Accurate and efficient floor localization with scalable spiking graph neural networks
Satellite Navigation volume 5, Article number: 6 (2024)
Abstract
Floor localization is crucial for various applications such as emergency response and rescue, indoor positioning, and recommender systems. The existing floor localization systems have many drawbacks, like low accuracy, poor scalability, and high computational costs. In this paper, we first frame the problem of floor localization as one of learning node embeddings to predict the floor label of a subgraph. Then, we introduce FloorLocator, a deep learningbased method for floor localization that integrates efficient spiking neural networks with powerful graph neural networks. This approach offers high accuracy, easy scalability to new buildings, and computational efficiency. Experimental results on using several public datasets demonstrate that FloorLocator outperforms stateoftheart methods. Notably, in building B0, FloorLocator achieved recognition accuracy of 95.9%, exceeding stateoftheart methods by at least 10%. In building B1, it reached an accuracy of 82.1%, surpassing the latest methods by at least 4%. These results indicate FloorLocator’s superiority in multifloor building environment localization.
Introduction
Indoor positioning has become increasingly popular because of its widespread applications. It determines the location of a target using positioning signals such as WiFi (Zhou et al., 2022), Bluetooth (Zhao et al., 2023), inertial sensors (Gu et al., 2018b), vision (Zhao et al., 2023), and light (Zhuang et al., 2018). So far, plenty of indoor positioning systems have been proposed and developed, yet most of them have focused on achieving 2D positioning. In complex structures like multifloor buildings, the task of floor identification is paramount. Floor localization is a fundamental basis for plenty of applications and services such as emergency response and rescue (Weinlich et al., 2018), indoor positioning (Gu et al., 2019b; ElSheimy & Li, 2021), and recommender systems (Deldjoo et al., 2020).
Floor identification methods can be categorized as fingerprinting (Zhang et al., 2020) and sensorbased methods (Qi et al., 2019; Ye et al., 2016). The fingerprinting approaches, including WiFi fingerprinting and cellular fingerprinting, are very popular due to the wide availability of WiFi and cellular infrastructures. The typical fingerprinting systems for floor localization include SkyLoc (Varshavsky et al., 2007), StoryTeller (Elbakly & Youssef, 2020) and ZeeFI(Gu et al., 2019a). Yet, such methods need a large amount of training data, which increases with the number of floors as well as the area of interest. Besides, the data need frequently recollected to keep the fingerprints update, which results in the poor scalability of these methods.
To expedite the site surveys of these classical fingerprinting approaches, many sensorbased methods have been proposed, which can reduce the amount of training data by using the inertial sensors and/or barometers. Popular sensorbased systems include FTrack (Ye et al., 2012), FLoc (Ye et al., 2014), BLoc (Ye et al., 2016) and BarFi (Shen et al., 2015), etc. While sensorbased methods can reduce the time and effort for site surveys by using additional sensors such as inertial sensors and barometers, they suffer from a limited coverage since these sensors are not available in all devices.
Recently, deep neural networks have been successfully applied in various domains, such as natural language processing (Vaswani et al., 2017), image classification (Krizhevsky et al., 2012), activity recognition (Gu et al., 2018a), and indoor positioning (Wang et al., 2016). Because deep learning models have the advantages of more powerful representational ability, better generalizability, and unnecessary feature engineering, they have also been applied to floor identification. StoryTeller (Elbakly & Youssef, 2020) uses Convolutional Neural Networks (CNNs) for floor identification, where WiFi signals are first used to generate images that are then fed to a CNN for predicting floors. While StoryTeller is both Access Point (AP)independent and buildingindependent, it requires the knowledge of physical building dimensions and 3D locations of APs, which are impractical in some scenarios. ZeeFI (Gu et al., 2019a) utilizes stacked autoencoders to identify floors, alleviating the effort for data collection by automatically recognizing the ground floor with smartphonebuilt sensors. However, it uses only two layers of autoencoders, and hence its representational ability is limited and might not well deal with more complex cases. In (Zhang et al., 2020), a cellularbased floor identification method is introduced, which first uses a denoising autoencoder for data noise reduction and feature extraction and then utilizes a Long ShortTerm Memory (LSTM) network for floor identification. However, these methods still suffer from the limitations including poor scalability, low accuracy, high computational cost, and requirement for additional information (e.g., building dimensions, locations of APs).
The motivation of this study is to develop a novel floor localization method that is scalable, accurate, robust, and computationally efficient. Existing methods often require a predefined and regular structure, which is not always feasible given the dynamic nature of WiFi APs. In this study, we introduce FloorLocator  a deep learningbased floor identification method that integrates computationefficient Spiking Neural Networks (SNNs) with powerful Graph Neural Networks (GNNs). By organizing APs into a graph structure, we can effectively handle situations where the exact positions of AP nodes are unknown. This approach offers a more adaptive and robust solution compared to conventional methods. Additionally, the integration of SNNs into the system is driven by their high computational efficiency, making them an optimal choice for realtime floor localization tasks.

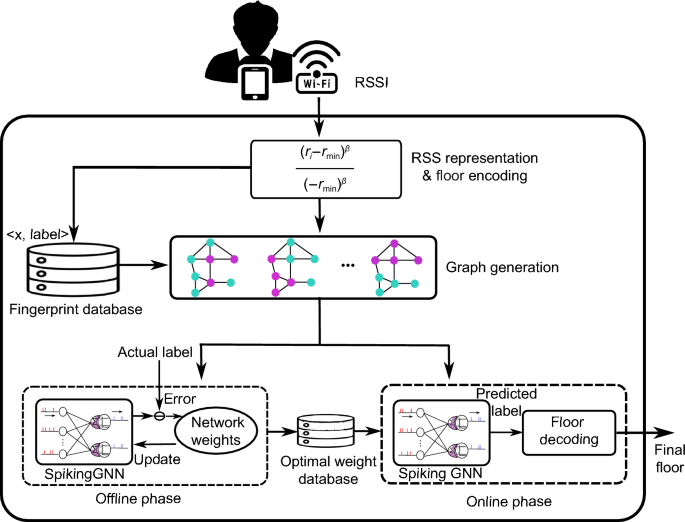

The basic idea of FloorLocator is illustrated in Fig. 1. We first represent raw WiFi scans into a RSS vector of values between 0 and 1 using the powed method (TorresSospedra et al., 2015). Then, we transform the RSS vector to a graph of visible APs before using a Spiking Graph Neural Network (SGNN) to learn the mapping between the ‘WiFi graph’ and the actual floor label. It includes two phases: offline training and online testing. In the offline phase, each RSS vector in the fingerprint database is first organized in a WiFi fingerprint graph, which is then fed into the SGNN together with its corresponding floor label. After that, the network is trained by minimizing the loss between the predicted label and the actual label. In the online phase, the upcoming WiFi scan is first transformed into a RSS vector, which is then expressed as a WiFi fingerprint graph. The trained network takes the fingerprint graph as input and predicts the floor label of the input WiFi scan.
In this work, FloorLocator is designed to offer several advantages over existing SOTA floor localization methods, including StoryTeller (Elbakly & Youssef, 2020). Specifically, based on graph theory, FloorLocator innovatively utilizes graph topology to learn representations, which enhances the transferability of the model. Then, to achieve computational efficiency and energy savings, FloorLocator employs an eventdriven SNN architecture. Finally, we perform extensive experiments to verify Floorlocator’s robustness.

We propose FloorLocator: a novel deep learningbased floor identification method, which reduces the burden of conventional WiFi fingerprinting by using SNN and GNN.

FloorLocator is both APindependent and buildingindependent. FloorLocator is graphbased, and hence it can be easily applied to new buildings or environments by simply modifying the input graph.

FloorLocator is efficient and robust. Its spikingbased operation allows it to function in an energyefficient way. Also, it can integrate information over time and filter out irrelevant information, making it robust to noise.

We implement and evaluate FloorLocator using publicly available datasets collected in three different buildings. Experimental results show that FloorLocator outperforms SOTA methods for floor identification. Our method has higher accuracy, better scalability, and greater efficiency compared to existing methods.
To the best of our knowledge, FloorLocator is the first work that integrates eventdriven SNNs with GNNs for floor identification.
Method and system
In this section, we first introduce the theoretical foundation of the proposed method, including GNNs and SNNs. Then, we present the problem formulation of floor identification with SGNN before elaborating on the proposed method.
Neural networks
This section describes the foundational concepts of neural networks, with a focus on GNNs and SNNs, which form the core of the proposed FloorLocator system. We illustrate how GNNs, renowned for their effectiveness in learning complex structures within graph data, manage the intricate relationships between architectural elements to facilitate precise floor localization. Concurrently, we introduce the dynamics of SNNs, highlighting their computational efficiency and their bioinspired mechanisms that mimic human neural activity patterns.
Graph neural networks
GNNs, a subset of neural networks, excel in feature extraction through node interactions in graphs. Their applications cover various fields, notably in graph mining (Li et al., 2019), object classification (Gu et al., 2020), recommender systems (He et al., 2020), and antibiotic discovery (Stokes et al., 2020). This study particularly focuses on Graph Convolutional Networks (GCNs), which leverage spectral domain convolutions through adaptable graph filters (Bianchi et al., 2021).
Let \(\varvec{G}=(\varvec{V}, \varvec{E})\) be a graph, where \(\varvec{V} = \{v_1, \cdots , v_n\}\) is the set of nodes, \(\varvec{E} = \{e_1, \cdots , e_m \}\) is the set of edges, and \(e_k=e_{ij}\) denotes an edge pointing from \(v_i\) to \(v_j\). The adjacency matrix \(\varvec{A}\) of the graph is an \(n\times n\) matrix, and \(A_{ij}=1\) if \(e_{ij} \in \varvec{E}\), otherwise, \(A_{ij}=0\). Thus, the node embedding \(\varvec{H}^{(l+1)}\) of a GCN layer in (Kipf & Welling, 2017) is described as:
where \(\sigma\) is an activation function (e.g., ReLU), \(\varvec{W}^{(l)}\) is a layerspecific learnable weight matrix, \(\tilde{\varvec{A}}\) is the normalized adjacency matrix of \(\varvec{A}\), and
where \(\varvec{I}\) is the identity matrix.
Early GCN works often need to compute the spectrum of the graph Laplacian (Bruna et al., 2014) or approximate the spectrum (Defferrard et al., 2016) using highdegree Chebyshev polynomials of the Laplacian matrix, which is computationally expensive. In contrast, the GCN approach in (Kipf & Welling, 2017) simplifies this by using firstorder Chebyshev polynomials of the graph Laplacian to cut down computational costs. Further streamlining is seen in (Du et al., 2018), which employs adjacency matrix polynomials up to the second degree, further reducing complexity. This efficient and effective method is utilized in our current work.
Spiking neural networks

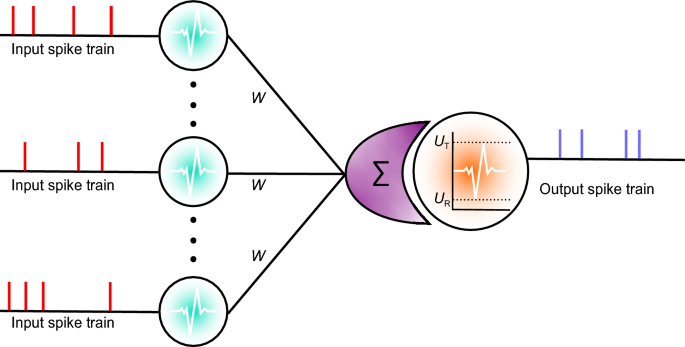

SNNs are braininspired neural networks that inherit the biological spatialtemporal dynamics mechanisms and rich spiking coding schemes (Roy et al., 2019). SNNs, being closer to biological neural mechanisms than DNNs, are very suitable for neuroscienceinspired models and are compatible with energyefficient neuromorphic hardware like Intel Loihi and Tianjic. Key neuron models in SNNs are the Spike Response Model (SRM) (Gerstner, 1995) and Leaky IntegrateandFire (LIF) model (Wu et al., 2018).
We first introduce the SRM (Shrestha & Orchard, 2018). where an input spike train \(x_i(t)\) enters a neuron, incorporating the refractory kernel \(\nu\) nd the neuron’s output spike train s(t). In this model, input spikes are converted into spike response signals \(a_i(t)\). These are scaled by synaptic weights \(w_i\) to produce postsynaptic potentials. Consequently, the neuron’s membrane potential, u(t), is determined by summing these potentials and refractory responses, which is written as:
An output spike is fired when the membrane potential surpasses a predefined threshold. The spike function \(f_s(\cdot )\) can be written as:
where
Another popular SNN model is the LIF model, which is more computationally tractable than SRM models while maintaining biological fidelity to some extent.
The dynamics of LIF is governed by:
where u(t) represents the internal membrane potential of a neuron at time t, \(\sum _i w_i x_i\) is the weighted summation of the inputs from preneurons, and \(\tau\) is a time constant. Figure 2 visualizes the computational model of a SNN. In this study, we use the LIF model due to its higher accuracy, lower computational cost, and easer training.
Problem formulation
We formulate the problem of floor identification with SGNN as a problem of finding node embeddings to predict labels of a subgraph (corresponding to a WiFi fingerprint) given a graph with node attributes. Let \(\varvec{G}=(\varvec{V},\varvec{E})\) denote the fingerprint graph, where a node \(v_i \in \varvec{V}\) is an Access Point (AP), and an edge \(e_{ij} \in \varvec{E}\) is the edge connecting two APs \(v_i\) and \(v_j\) that are spatially close to each other, which means that the two APs should at least appear once in a fingerprint vector of the radio map. The learning process of node embedding for floor identification includes two steps:
(i) Aggregating messages The task of this step is to aggregate messages from neighboring APs, which is written as:
where \(\varvec{h}_v^{(l)}\) and \(\varvec{m}_v^{(l)}\) denote the node embedding and the message vector of AP v at lth layer, \(f^{(l)}\) represents the aggregation function, \(\mathcal {N}(v)\) is the neighboring nodes of v.
(ii) Transforming messages The task of this step is to transform messages to the next layer. Mathematically, the process is described as:
where \(g^{(l)}\) is the transformation function at lth layer. For batch execution, the above equation can be written as:
where \(f_{LIF}\) is the LIF activation function, and other symbols are the same as described in Eq. (1).
Then, the objective of floor identification with SGNNs is to train the model by minimizing the total loss L which includes the supervised loss and graph regularization term, namely
where \(L_0\) is the supervised loss, \(\lambda\) is a weighting factor and \(L_\text {reg}\) is the graph regularization term. In our work, we use the mean squared error as the supervised loss, namely
where \(y_i\) is the ground truth floor label for the ith fingerprint, and \(\hat{y}_i\) is the estimated floor label. The graph regularization term can be written as:
where \(\varphi (\cdot )\) is a GNNlike differentiable function, and \(\varvec{X}_i\) is the node feature vector for AP \(v_i\).
The FloorLocator system
In this section, we first describe the architecture of FloorLocator, followed by an introduction of RSS representation & floor encoding, and WiFi graph generation. Then we elaborate on each of its components: TAGConv Layer, LIF module, DeepBlock module, Eventbased Batch Normalization module, FC Layer & Voting Layer module. Finally, we introduce network training and floor decoding.
System architecture
The FloorLocator system is specifically designed to address the challenges of floor localization mentioned in the introduction section. The architecture of FloorLocator is illustrated in Fig. 3. The system accepts WiFi fingerprints (which can also be cellular fingerprints) as input. These fingerprints are initially represented as RSS vectors and subsequently organized into a graph based on the proximity of their APs. This graphbased representation is particularly beneficial in scenarios where the positions of the AP nodes are unknown, allowing for a flexible and adaptive structure. Following this, the graph data undergoes a transformation into spikes after the first Topology Adaptive Graph Convolutional (TAGConv) (Du et al., 2018) layer using the LIF activation function. The spikeconverted data is then processed.
RSS representation and Floor encoding
In this section, we first introduce the fingerprint data representation method. The number of visible APs changes with location, and hence the size of each fingerprint vector may be different. To fix the size of the fingerprint vector, we describe a fingerprint as a vector of RSS from all the APs in the environment. Let \(\varvec{x}\) indicate the fingerprint, and \(\varvec{x} = <r_1, r_2, \cdots , r_M>\), where \(r_i\) represents the signal strength received from the ith AP and M is the number of APs in the environment. To better learn features from fingerprints via SGNNs, we describe the fingerprint in positive values using the powed representation method in (TorresSospedra et al., 2015). The raw RSS \(rss_i\) is then described as a positive value \(p_i\) as follows:
where \(\tau\) is a RSS threshold (we set min as the threshold), indicating if an is detected in a fingerprint. \(\beta\) is constant parameter, which is simply set to the mathematical constant e. These APs with RSS lower than \(\tau\) are considered as notdetected. Thus, the fingerprint \(\varvec{x}\) can be rewritten as a vector of positive values of all the APs in the environment, namely
Then, we describe how the floor information is encoded into an identity matrix for easier processing. Floor labels are generally categorical or are not fully numeric and need to be converted to numbers (mostly integers) before fed into a DNN or SNN. In this work, we encode the floor label into an identity matrix with onehot encoding, where each row indicating a floor, has and only has one element with value 1 representing the floor.
Graph generation
Classical fingerprinting methods need to store the APs’ IDs, which limit their scalability. A recently developed method called StoryTeller ((Elbakly & Youssef, 2020) alleviates this requirement by transforming fingerprints into images. While StoryTeller is scalable, it requires the locations of APs, which is impractical in some cases. In this study, we organize the fingerprints in a graph, which does not require the APs’ IDs, neither the locations of APs. This makes our method more scalable and applicable to different environments.
Specifically, we generate the fingerprint graph according to the closeness of APs. Each visible AP is taken as a node \(v_i\) of the graph, and each edge \(e_{ij}\) connecting two nodes (APs) represents the two APs close to each other. When the two APs appear in the same fingerprint, we add an edge to connect them until all the fingerprints are traversed. The detailed steps of constructing the fingerprint graph are represented in Fig. 4. The algorithm takes as input a radio map D, and outputs the fingerprint graph. It first generates the number of APs N by computing the length of any fingerprint vector (e.g., \(\varvec{x}_0\)). Then, we add each node into the node set of the graph. We use the index of an AP appearing in the fingerprint as the node ID, rather than their IDs. This allows our method to be scalable to new environments since it alleviates the dependence on APs’ IDs, which exists in traditional fingerprinting methods. After that, we transverse each fingerprint, and extract the indexes of APs that are visible in the fingerprint into a set C. Finally, we add two edges \(<v_i, v_j>\) and \(<v_j, v_i>\) into the edge set E of the graph if they are not in the edge set yet. The reason of adding the two edges is to construct an undirected fingerprint graph.
Details of FloorLocator
In this section, we delve into the intricate components that form the FloorLocator’s architecture. The ‘TAGConv Layer’ adapts to topological nuances, a significant leap from conventional layers. Moving forward, the ‘LIF Activation’ implements the dynamics of spiking neurons, a departure from standard activation functions. At the heart of our architecture is ‘DeepBlock,’ a complex assembly that enhances the network’s learning depth. Stability is a key in learning, and ‘Eventbased Batch Normalization’ ensures this by mitigating the common gradientrelated issues. Finally, the ‘FC Layer and Voting Layer’ work in unison to interpret and classify the processed data, a critical final step in our system’s response mechanism.
TAGConv layer
Instead of using the popular graph convolution (Kipf & Welling, 2017), we adopt the TAGConv (Du et al., 2018) because of its excellent performance in terms of accuracy and computational efficiency. It utilizes a set of fixedsize learnable filters to simultaneously extract both node features and the strength of correlation between nodes. Let \(\varvec{G}_{c,k}\) represent the kth graph filter. The resulting kth feature map \(\varvec{h}_k^{(l)}\) on layer l is given by the equation:
where \(\varvec{x}_c\) is the cth input feature vector of nodes, \(C_l\) denotes the count of input features per node at layer l, and \(\varvec{b}_k\) is a tunable bias vector. To adapt the convolution operation to various graph topologies, it’s crucial to tailor the graph filter. A common method involves defining the graph filter using the normalized adjacency matrix \(\tilde{\varvec{A}}\) of the graph,
with \(g_{c,f,k}\) as the graph filter’s polynomial coefficient and \(\tilde{\varvec{A}}\) as the normalized adjacency matrix.
LIF activation
ReLU (Glorot et al., 2011) and its variants, like LReLU (Maas et al., 2013) are prevalent activation functions in CNNs. However, ReLU is not suitable for SNNs. Instead, we employ the LIF model, widely recognized for modeling spiking neuron dynamics (Roy et al., 2019). As depicted in Fig. 5, the LIF model illustrates that a neuron’s membrane potential accumulates incoming spikes and experiences leakage over time. Upon reaching the threshold \(u_T\), the neuron emits a spike and enters a refractory period.
The LIF activation function, \(f_{l}\) is mathematically expressed as:
where \(u_R\) and \(u_T\) denoting the reset value and firing threshold, respectively. Essentially, the LIF function triggers a neuron to fire a spike when its membrane potential reaches or exceeds \(u_T\), following which the potential resets to \(u_R\).
DeepBlock
DeepBlock is a key component of FloorLocator, which is composed of three DeepLayers. These DeepLayers are densely connected to learn features more effectively from graphstructured fingerprint data. Each DeepLayer contains two TAGConv layers, two eventbased Batch Normalization (BN) layers, and two LIF activation layers. Such a design is inspired by the basic block of ResNet, which can effectively eliminate problems of gradient vanishing and explosion by adding skip connections.

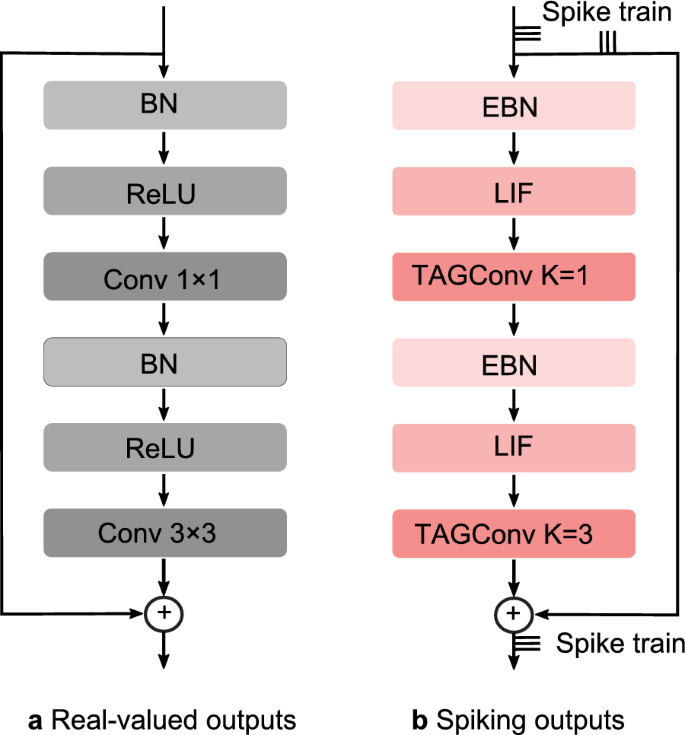

Figure 6 compares the basic block of ResNet with the basic block (DeepLayer) of our design. The distinctions between ResNet and our proposed method are threefold:

Convolution Operation Unlike the conventional convolution operation in ResNet, we employ TAGConv to handle graphstructured fingerprint data. This choice is motivated by the capability of GNNs to effectively process WiFi APs without the prior knowledge of their structure. In contrast, CNNs organize nodes into a regular rectangular structure.

Activation Function The commonly used ReLU function in ResNet is substituted with the LIF activation in our design. This change is essential because ReLU is incompatible with spiking data. SNNs are known for their computational efficiency, and their combination with GNNs can enhance the model’s computational efficiency.

Normalization Layer We replace the BN layer of ResNet with EBN to tackle gradient vanishing and explosion challenges.
Furthermore, DeepLayer is designed to take spikes as input and output spikes, diverging from the realvalued data processing in traditional networks. In the FloorLocator architecture, we incorporate two DeepBlocks. The number of DeepBlocks is determined by empirical study. Our experiments show that two DeepBlocks suffice to achieve excellent floor identification accuracy.
Eventbased batch normalization
In this part, we introduce EBN in detail. As we know, gradient vanishing and explosion are the main problems that prohibit a model from going deeper. A common solution to the problems in deep neural networks is to utilize BN, which enables the model to converge stably and go deeper. However, BN cannot be directly used in SNNs due to the existence of additional temporal dimensions and different activation mechanisms. To avoid gradient vanishing and explosion in the proposed method, we adopt the EBN method (Zheng et al., 2021) and normalize the presynaptic inputs along the channel dimension. The inputs of each neuron are adjusted into the interval ranging from 0 to \({U}_{T}\), where \(U_{T}\) epresents the predefined spiking firing threshold (0.5 is used in this work). Such an adjustment can balance the inputs and neuronal membrane potential to avoid the membrane potential being oversaturated or the input information being overexpressed. Mathematically, the EBN is described as:
where \(\varvec{x}_{i}^{l}\) represent the ith channel feature map of \(\varvec{x}^{l}\), \(u_{T}\) represents the Spiking firing threshold, \(E(\varvec{x}_{i}^{l})\) and \(D(\varvec{x}_{i}^{l})\) denote the Expectation and Variance of \(\varvec{x}^{l}\) over the minibatch. \(\epsilon\) is a tiny constant to avoid dividing by zero error, \(ee\gamma _{i}\) and \(\beta _{i}\) are two learnable parameters.
In the training process, the Expectation and Variance of \(\varvec{x}_i\) can be computing by
In the inference stage, we cannot directly compute the Expectation and Variance of \(\varvec{x}_i\) due to the batch is not applicable. Therefore, we estimate the Expectation of \(E(\varvec{x}_{i}^{l})\) and \(D(\varvec{x}_{i}^{l})\) in the whole dataset, which can be obtained by moving average solution in the training stage. More details about such estimations can be found in (Zheng et al., 2021).
FC layer and voting layer
At the top of FloorLocator are two FC layers and one voting layer. The FC (Fully Connected) layer in our network operates similar to those in standard neural networks, defined as,
where \(\varvec{x}\) is the inputs from previous layer, \(\varvec{W}\) is the weight matrix, \(\varvec{b}\) is the bias vector, and \(\varvec{h}\) is the output feature.
For decoding the network’s output, we use a voting layer, following the approach in (Wu et al., 2019). Each output label is linked to a neuron in this layer. The class prediction is based on the neuron that receives the highest number of votes (or spikes) averaged across a time window.
Network training and online localization
Our network associates the output vector to each floor label by voting, and the final output \(\varvec{O}_L\) in a given time window is written as
where \(\varvec{U}\) represents the constant voting matrix used for decoding spikes, while \(\varvec{o}^t\) signifies the output feature from the final layer at time t.
To accommodate the error backpropagation, we take the mean square error between the average voting result and the label vector \(\varvec{y}\) as the loss function.
However, the spiking function poses a significant challenge as it is not differentiable, which makes it impossible to use the error backpropagation method directly. To elaborate on this challenge, let’s take a look at the expression for calculating weight gradients obtained through SpatialTemporal BackPropagation (STBP) (Wu et al., 2018):
In the above equation, y represents the target output vector, W denotes the SNN’s weight matrix, \(\mathcal {L}\) represents the loss function, and \(\frac{\partial {y(t)}}{\partial {u(t)}}\) represents the gradient of the spiking activity function. The weight update formula is as follows:
Here, \(\eta\) represents the learning rate. However, because \(\frac{\partial {y(t)}}{\partial {u(t)}}\) is either zero everywhere or a very large value in rare cases. As a result, the weights may not be updated at all, or they may be updated to a large value, leading to unstable training.
Previous studies tackled the nondifferentiable challenge by using Surrogate Gradients (SG) (Wu et al., 2019; Shrestha & Orchard, 2018; Wu et al., 2018). To address this issue, we adopt a rectangular function (Wu et al., 2019) to approximate the derivative of the spiking function. Figure 7 illustrates the comparison between the rectangular function and the spiking activation function. The rectangular function is defined as follows:
where a is a width parameter set to 0.5 in this study. In the ablation study, we will analyze the effect of different values.
After training the network, it can predict the floor label of upcoming WiFi scans. The process of online floor localization is described below: first, the upcoming WiFi scan is represented as a RSS vector with values between 0 and 1, and then the RSS vector is expressed as a WiFi fingerprint graph according to the visible APs in the WiFi scan. After that, the WiFi graph is fed to the trained network to output the floor label, which is subsequently translated to a meaningful floor label (e.g., categorical character).
Experiments and results
Experimental setup
We evaluate the proposed method on three public scenarios (buildings) of the commonly used UJIIndoorLoc datasets (TorresSospedra et al., 2014).UJIIndoorLoc datasets are multibuilding and multifloor WiFi fingerprint datasets, which were collected with the assistance of more than 20 users using more than 25 Android devices. There are 520 APs visible in the database. Table 1 shows the details of the three test buildings.
While the dataset is relatively large, there still exists an imbalance in the data that the number of samples for each floor is not equal. Such an imbalance will affect the performance of deep learning models. To address this issue, we perform random oversampling to increase the number of samples in minority classes until a balance is reached. Such an operation is also for a fair comparison with SOTA StoryTeller (Elbakly & Youssef, 2020) that adopts the same strategy for data augmentation.
We implement the proposed method in PyTorch. The Adam optimizer is used to optimize the model on the training dataset. The number of epochs is set to 100, and the learning rate is 0.001. We repeated the training and test procedure for five rounds with different random seeds and reported the average accuracy. Table 2 shows the values of hyperparameters.
Experimental results

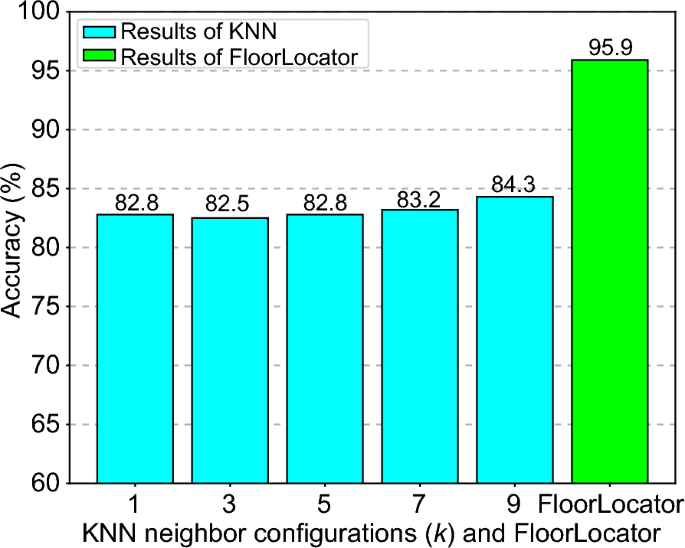

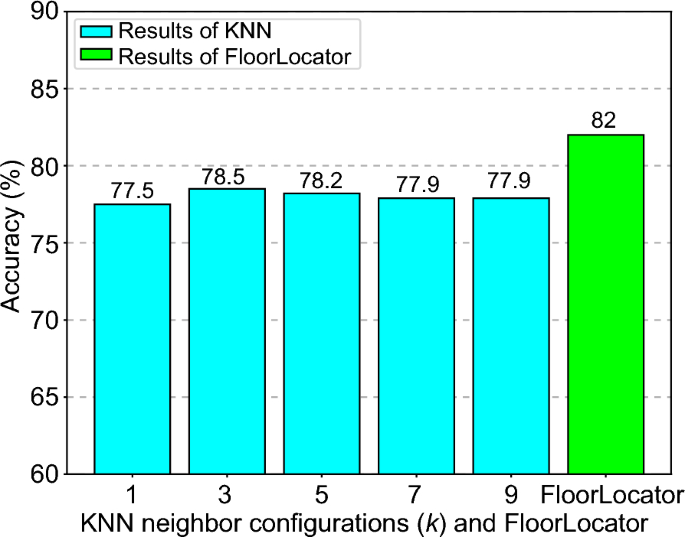

We first evaluate the proposed method on three test buildings and compare it with the classical fingerprinting method  kNN (k Nearest Neighbors). The kNN is selected for performance comparison in ablation studies because of its popularity and widespread use in fingerprinting positioning. It often serves as a benchmark in many indoor localization systems and provides a baseline against which we can measure the improvement offered by the proposed FloorLocator. Later, we will also compare the performance of the proposed method with other SOTA methods. The value of k method ranges from 1 to 9 with an interval of 2. Figures 8, 9, 10 the floor identification accuracy in different buildings with the proposed FloorLocator compared to kNN method. It can be seen that FloorLocator significantly outperforms the popular in all three testbeds. The accuracy is improved by about 11.6% in Building 0, 3.5% in Building 1, and 6.8% in Building 2, respectively.
Compared to kNN, which needs to store APs’ IDs and is buildingdependent, our method is both APindependent and buildingindependent, making it more scalable for new buildings. This attribute is due to the organization of fingerprints in a graph, which allows us to better capture the neighborhood correlation between samples on the same floor. These results indicate FloorLocator can learn useful feature embeddings from data, which helps the method capture more distinguishable features and get high accuracy. While kNN locates the floors using raw data, it results in a relatively lower accuracy.
Comparison to stateoftheart methods
In this subsection, we compare the proposed method with SOTA methods for floor identification. The systems considered are as follows:

StoryTeller (Elbakly & Youssef, 2020): A CNNbased method for floor identification. It first converts WiFi fingerprints into images that are fed to the VGG19 (Simonyan & Zisserman, 2015) network.

kNN: The popular method for floor localization, which is widely used (Luo et al., 2019).

TrueStory (Elbakly et al., 2018): A neural networkbased floor estimation method, which uses a multilayer perceptron network to fuse weak learners’ outputs.

Locus (Bhargava et al., 2015): A heuristicsbased algorithm for floor identification.
Since the reference (Elbakly & Youssef, 2020) reported the performances of StoryTeller, TrueStory, and Locus in the Building 0 and 1 of the same UJIIndoorLoc dataset, we directly report their floor identification accuracy mentioned in (Elbakly &Youssef, 2020). For kNN, we implement it by ourselves. All methods are evaluated using the same training and test data for a fair comparison.
Figure 11 shows the performances of different methods in Building 0 and Building 1. It demonstrates that FloorLocator performs the best among these methods. Specifically, FloorLocator achieves about 96% and 82% correct floor estimates in Buildings 0 and 1, respectively. It surpasses StoryTeller, which is also APindependent and buildingindependent, by about 16.5% in Building 0 and 19.3% in Building 1. The reasons why FloorLocator outperforms StoryTeller can be summarized as follows: first StoryTeller is a CNNbased approach, which needs to convert a WiFi scan to an image. During the conversion, there might be some information loss, affecting the performance of subsequent localization. By contrast, our method is graphbased, which uses the graph topology to learn useful representations. This allows it to better capture the spatial relationship between APs, which can be difficult to model using a CNN. Second, FloorLocator is more robust to noise than CNNbased methods. The integrateandfire neuron activation enables it to filter out irrelevant information.
It is also interesting to note that kNN performs better than StoryTeller and other baseline methods. This might lie in deep learningbased methods, including StoryTeller and TrueStory, which may lose some useful information in the representation and/or conversion of WiFi scans. However, kNN has poorer generalization ability to new environments compared to FloorLocator and StoryTeller that are easily scalable.
The above experiments of FloorLocator against kNN and other SOTA methods demonstrate the superiority of the proposed method, which not only extracts rich flooraware information, but also learns robust topology representations by filtering out useless features through the innovative SGNNs architecture.
Ablation experiment
To figure out the different impacts of different components involved in FloorLocator, we conducted several ablation studies. In the following, the effects of AP density, RSS threshold, RSS representations, width parameters, data size, and the generalization to new buildings will be presented and analyzed.
Effect of AP density
To understand the impact of AP density on FloorLocator’s performance, we conducted tests with varying AP densities. To do this, we randomly remove certain APs from both the training data and test data and use the remaining data for training the model and testing. AP density represents the ratio of the number of remaining APs to the total number of APs before the removal operation. Figure 12 shows how different numbers of APs in the training and test data affect the accuracy of the floor identification of our method. We can see that the accuracy decreases as the density of the APs used in the training declines. However, it is observed that FloorLocator can achieve relatively high accuracy even when 50% APs are removed, resulting in an accuracy of about 89.5% in Building 0, 66.1% in Building 1, and 82.6% in Building 2.
Figure 12 implies that FloorLocator is robust to the change of APs mainly due to the use of spikebased communication and activation mechanisms. FloorLocator can produce stable accuracy when there is a relatively high AP density, especially when AP density is greater than 70%.
Effect of RSS threshold
RSS threshold has an impact on the performance of the proposed method. Thresholding is a technique commonly used to remove irrelevant or noisy RSS values from fingerprints. To evaluate the effect of different threshold values on the performance, we conducted 100 training sessions on the B0 dataset and recorded the testing accuracy. The threshold values used range from to the minimum value in the dataset. Experimental results are shown in Fig. 13, indicating that a larger threshold value will filter out a substantial amount of information, leading to poorer performance. By contrast, a small threshold value will not reduce the testing accuracy yet remaining all values will somehow increase the computational complexity. Our analysis suggests that a threshold within the range of 85 to strikes an optimal balance. In this range, weaker, possibly irrelevant signals are effectively discarded, thereby optimizing computational efficiency without compromising accuracy. Notably, thresholds near appear to remove too many vital data, leading to a drop in performance.
Through the comparison in Fig. 13, we can draw that the selected range of 85 to 100dB ensures the retention of signals critical for achieving the desired testing accuracy, simultaneously filtering out the most disruptive noise.
Effect of RSS representations
We investigated the effect of various fingerprint representation methods on the performance of our model. Specifically, we considered four methods: positive values, zerotoone normalized values, exponential values, and powered values, as suggested by Torres et al. (TorresSospedra et al., 2015). After training our model for 100 epochs on the B0 dataset, we assessed the test accuracy. As shown in Fig. 14, our model effectively achieved optimal accuracy using the positive values, zerotoone normalized values, and powered values representation methods. However, the exponential values method was less effective. A possible explanation for the underperformance of the exponential values method is its potential to produce the values greater than 1, some of which can be significantly high. This characteristic might be incompatible with the inherent features of our SNN. Specifically, SNNs emit spikes only under certain conditions within a specified time frame. If a normalization process provides unsuitable data, the neurons may become hyperactive, resulting in continuous firing. Given that the exponential method might yield a prevalence of high values, detecting subtle variations in the original dataset becomes increasingly challenging. Interestingly, the positive values representation seems to further hasten our method’s convergence to optimal accuracy.

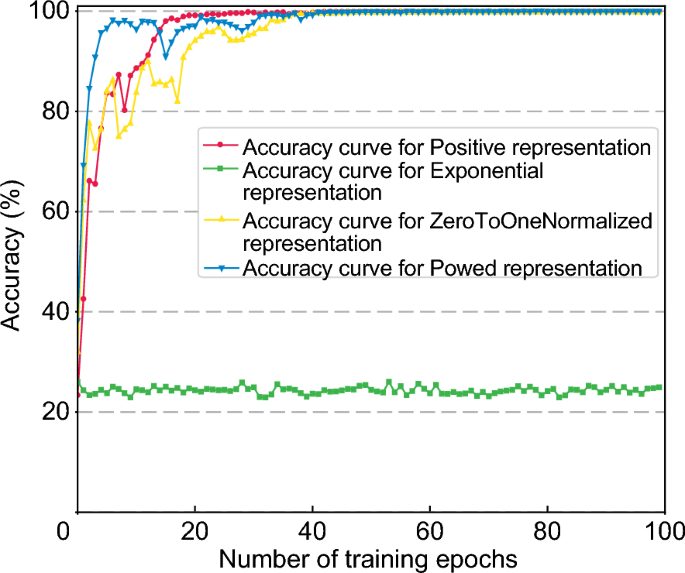

As can be seen in Fig. 14, the powed representation method can achieve a balance between accuracy and training efficiency.
Effect of width parameter
Since the spiking function is nondifferentiable, we introduce a rectangle function to approximate the derivative of the spiking function. Here we analyze the influence of different width parameters of the rectangle function on the testing accuracy using the B0 dataset after training our model for 100 epochs. The value of the width parameter covers the commonly used values, namely 0.1, 0.5, 1.0, 2.0, 5.0, 7.5, and 10.0, respectively.

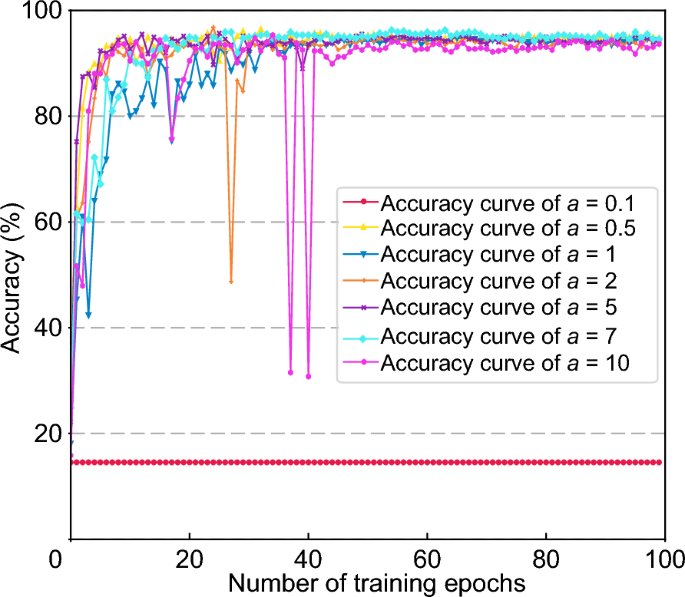

Figure 15 illustrates the relationship between our model’s performance and the width parameter value, which ranges from 0.5 to 10.0. Within this range, our model tends to achieve optimal performance. In contrast, extremely low values, such as 0.1, impede the model’s convergence on testing accuracy. Interestingly, while a smaller width parameter provides a more precise representation of the pulse function, the model’s optimal performance appears to lean towards the larger values. This inclination might stem from the instances where the network grapples with significant gradient explosions, especially when the gradient closely resembles the pulse process. A broader rectangle function, offering smoother derivatives, aids the model in achieving a more seamless convergence. However, setting the width parameter too large, for instance beyond 10, leads to unpredictable training behaviors. This underlines the crucial task of judiciously selecting a width parameter. Such a choice should ideally encapsulate the dual objectives of aptly approximating the pulse function while also facilitating efficient model training.
Effect of data size
As we know, deep neural networks often require a large amount of data to train the models. Therefore, in this section, we evaluate the effect of data size on the performance of FloorLocator. Figure 16 demonstrates that FloorLocator is easier to train and achieves a good floor identification accuracy (about 94% in Building 0, 70.8% in Building 1, and 92.2% in Building 2) with only 30% This significantly reduces the time and effort required for collecting training data, allowing it to scale to new environments. Thus, FloorLocator can easily adapt to fewshot applications, which indicates the excellent feature extraction ability of FloorLocator within a limited number of samples.
Generalization to new buildings
Generalization ability is important for a floor identification system to be scalable. Generalization here means how well a model pretrained in a building works in a new building with only a limited amount of training data from the new building. We trained our model on the training data from Building 0 and evaluated its performance in new buildings (Building 1 and Building 2) with different amounts of training data from the new buildings for finetuning the model.

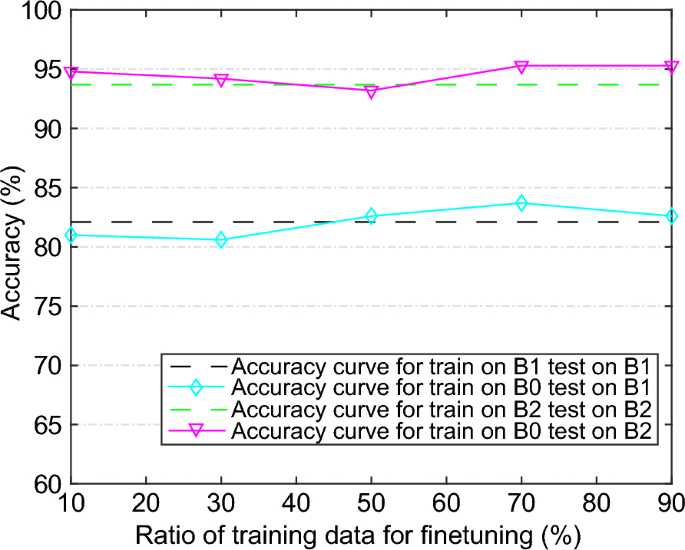

Figure 17 demonstrates that about 10% new training data is enough to achieve floor identification accuracy close to the baseline where training and testing are conducted using the full data. The overhead of collecting such an amount of training data is negligible compared to classical fingerprinting methods that need to recollect a complete fingerprint database. This implies that the proposed method has excellent generalization ability and is scalable to new buildings. Such ability is attributed to the fact that we organize WiFi fingerprints in a graph of APs, making its easy adaptation to new scenarios by simply changing the input graph.
Through these ablation studies, we can conclude that FloorLocator has superior feature extraction ability by utilizing the dataoriented SGNN architecture. FloorLocator is not only robust to noisy signals but also shows good generalization ability across different buildings. Therefore, the effectiveness and scalability of the entire method are verified.
Conclusions and discussion
In this study, we proposed a novel floor identification method named FloorLocator utilizing SGNNs. This method is scalable, accurate, and efficient. Our findings show that FloorLocator notably surpasses both traditional fingerprinting techniques and contemporary deep learning methods in three test scenarios, demonstrating its robustness even in environments with complex architectural layouts and varied configurations.
However, FloorLocator still faces a challenge in large environments: the computational efficiency of FloorLocator will degrade dramatically when the number of in the environment is very huge. In such cases, the constructed input graph becomes a high dimensional tensor, which makes the convolution operation very slow. This aspect is particularly critical in scenarios where realtime floor localization is required.
Despite these challenges, FloorLocator has demonstrated commendable resilience and accuracy in scenarios with sparse data available, much better than the conventional methods that rely heavily on dense WiFi data. This resilience highlights its potential for practical deployment in a variety of indoor settings, even those with limited access to comprehensive WiFi data.
In the future, we will extend FloorLocator to large environments by constructing the input graph in a more efficient way or dividing the environment into smaller areas so that the dimension of constructed input graphs is not too large. Optimizing the system for these extensive environments will require innovative approaches to data processing and neural network configuration, ensuring that FloorLocator maintains highperformance levels without compromising on the speed or accuracy.
Also, we will implement FloorLocator on neuromorphic hardware. The anticipated integration with neuromorphic hardware promises to further enhance FloorLocator’s computational efficiency, potentially transforming it into a more versatile and powerful tool for indoor floor localization. This advancement can extend the system to be used in real time scenarios such as emergency response, personalized indoor navigation, and locationbased services.
In conclusion, FloorLocator stands as an evidence to the potential of SNNs in challenging realworld applications, setting a new benchmark in indoor floor localization. As we continue refining FloorLocator, we anticipate its evolution into a cornerstone technology in its domain, adaptable to the complexities of various indoor environments and capable of supporting a wide spectrum of applications.
Availability of data and materials
The datasets generated and/or analysed during the current study are available online via https://archive.ics.uci.edu/dataset/310/ujiindoorloc.
